GEOPHYSICAL SURVEY

Although geophysical survey techniques have a wide range of applications in military operations, archaeology and natural resource mining elsewhere in the world, its primary and most significant role in Singapore is: helping architects and engineers in the construction industry make well-informed decisions during the design stage and construction process. Geophysical survey (Ground Imaging) is a collection of geophysical data, used for various types of analyses. These useful data gathered from geophysical survey techniques are instrumental in keeping our construction works safe, productive and efficient. With vast experience and proven track records in Singapore over the years, Ryobi G is one of the geophysical survey companies which clients could trust.

Some common applications of geophysical survey techniques include:

Detecting underground utilities
Detecting unknown pile length
Detecting buried structures
Detecting cavity and loose soil
Detecting landfills
Detecting cavity
Detecting bedrock
Obtaining representative images of rock profiles
Obtaining representative images of soil profiles

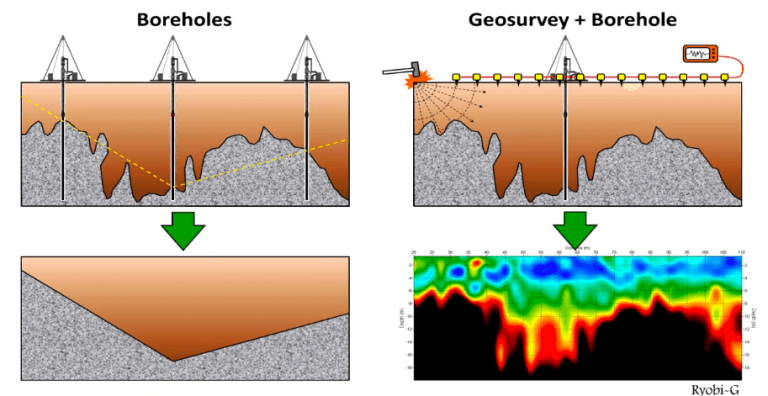

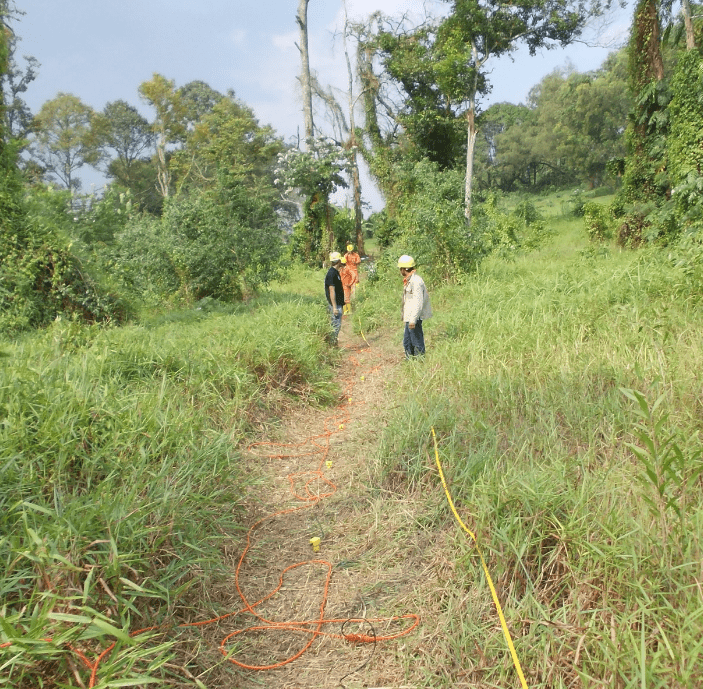

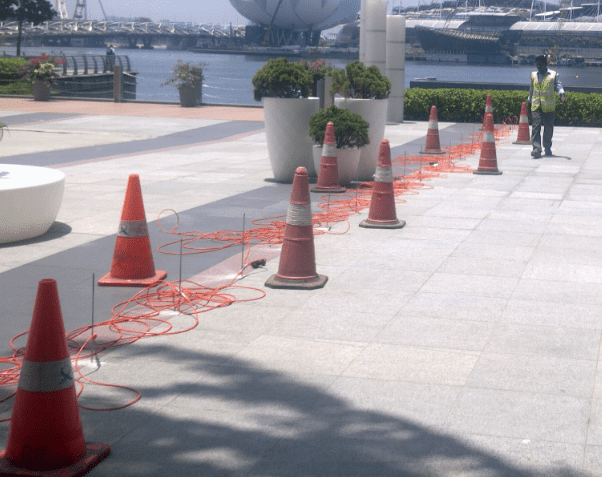

Geophysical survey techniques focus on emphasising the contrasting physical properties between materials present below the ground surface. This is done on the ground surface using non-invasive, indirect methods to acquire data which are relevant and reliable to infer the profile below. Ultimately, useful information obtained through these geophysical techniques will help to minimise the no. of bore logs and trial trenches needed, before a conclusive interpretation of the profile could be achieved.

Some benefits of geophysical techniques seen here in Singapore include:

– reduction in damage done to existing underground services during construction activities
– reduction in time and costs needed for rework
– It can been seen as techniques which complement with soil investigation techniques, limited to determine uneven soil strata. Geophysical survey techniques can be used to overcome this limitation by producing meaningful data  for comparative purposes.

MAXIMUM EFFECTIVENESS

Ryobi G understands that each project requirement is unique in its own way. Therefore, the team adopts a comprehensive approach in designing the most effective geophysical survey solution for each project requirement. This is done by integrating more than one method seamlessly into a single solution; a suitable combination of geophysical survey techniques like:

– Ground Penetrating Radar
– Borehole Radar

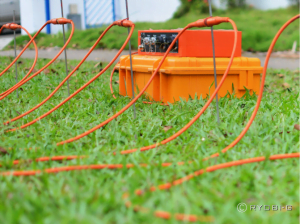

– Electrical Imaging/Resistivity Test
– Seismic Reflection test
– Seismic Refraction test
– Crosshole Seismic Survey
– Downhole Seismic Survey
– PS Suspension Logging Test

With the right people and the right techniques, Ryobi G is committed to deliver accurate and reliable results.

CROSSHOLE SEISMIC SURVEY

Crosshole Seismic tomography, colloquially known as “Crosswell Seismic” or Crosshole Tomography is a relatively new technique we used to profile soil.   Crosshole Seismic technique is used to determine compression (P) and seismic (S) waves travelling horizontally across medium on site, typically soft materials like soil. For this crosshole seismic technique, there are many devices to choose from to generate a high quality P and/or S wave. This specific method of geophysical survey can explore a depth up to 100m, measuring the gross velocity difference.

Crosshole Seismic Survey requires minimally 2 boreholes with 70mm diameter PVC pipes. The receiver and probes are both inserted into the boreholes, followed by a shock generation by the source which is then received by the receiver. Data is collectively stored and analyze later.

Applications of Crosshole Seismic:
1) Foundation analysis
2) Insitu material testing
3) Soil profile/mechanics relative to seismic velocity
4) Locate the position of underground utilities

Similar to other kinds of geophysical surveys, Crosshole seismic survey is able to provide users with information in regards to the velocities of the ground, where horizontal layer and fundamentals assumptions can be made.

Placement of source and receivers into boreholes.

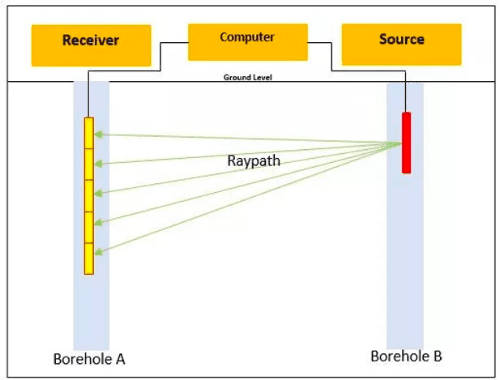

Schematic diagram of Crosshole Seismic Survey.

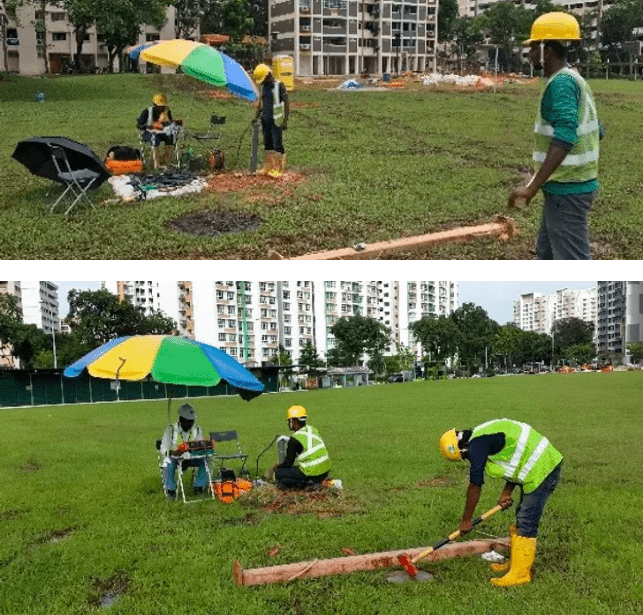

Workers can be observed hammering to generate waves from the seismic source for the survey.

DOWNHOLE SEISMIC SURVEY

Similar to the Crosshole Seismic survey, Downhole Seismic survey determines the P and S velocity of the foundation. As opposed to crosshole seismic survey, the seismic sensor will be lowered down to the borehole whereas the seismic source will be generated on ground level by hammering on a steel plate. . For P-wave generation, the hammering point shall be on top of the steel plate. For S-wave generation, the hammering point shall be on the side of steel beam.  During data processing, the first time arrival of the P-wave / S-wave will be determined.

Applications of Downhole Seismic:
1) Foundation analysis
2) Insitu material testing
3) Soil profile/mechanics relative to seismic velocity

Data analysis is more straightforward as compared to crosshole seismic survey and it lesser error prone.

PS SUSPENSION LOGGING TEST

This method of PS suspension logging has been around over decades for the use of checking civil structures. P-S logging survey (P-S suspension) uses a low frequency probe that measures the waves without using indirect excitation and it yields high resolution results as compared to other geophysical surveys.

With only the need for one borehole, PS suspension logging is also not affected by the path effects from the source, thus it yields more accurate results particularly for P-waves.

Applications for PS Suspension Logging:
1) Underground foundation and object detection
2) Civil structures
3) Soil properties
4) Dam Safety investigations

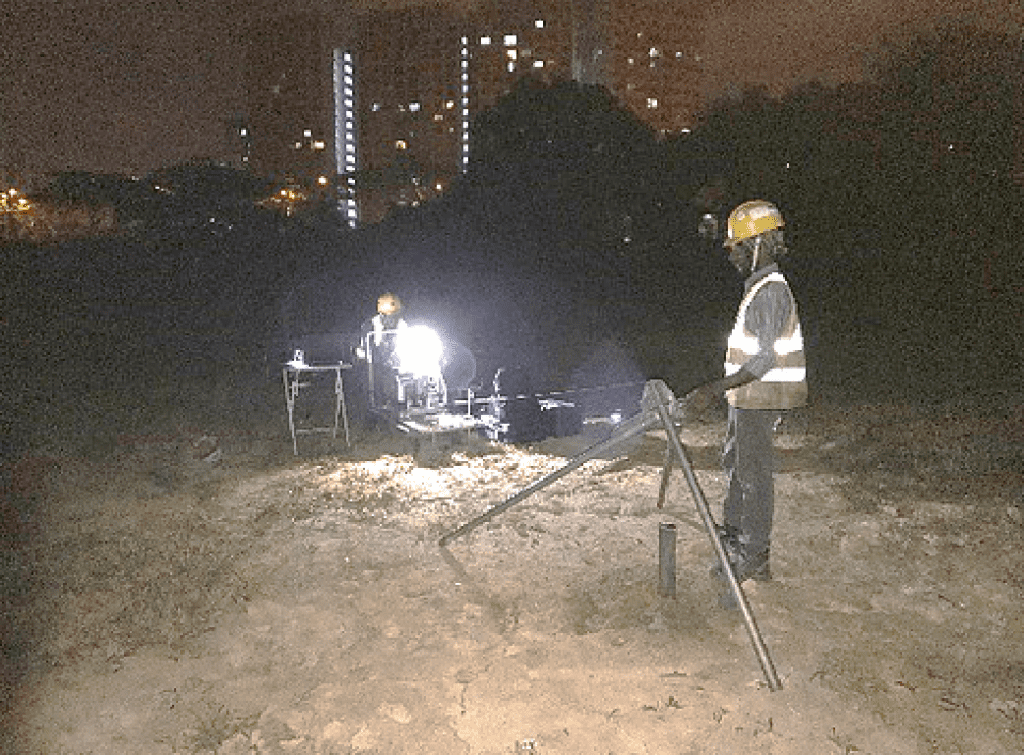

Site work for PS suspension logging test carried out at night to minimise surrounding noise for optimal result.

SCENARIOS THAT EMPLOYS THE USE OF GEOPHYSICAL SURVEY

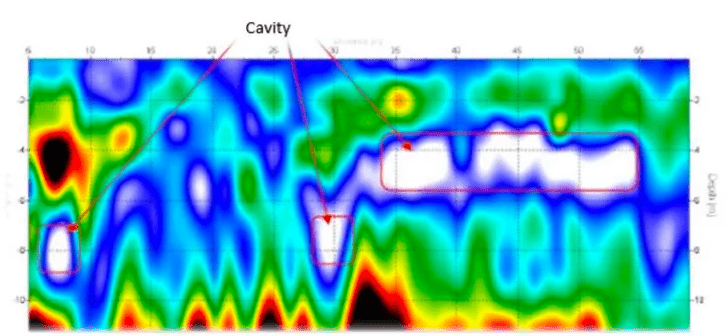

CAVITY DETECTION

Suitable for foundation / piling design
Suitable for cable laying / pipe jacking design
Suitable for earthwork design
Depth of penetration subjected to the survey method
Overcome the limitation of boreholes in detecting localised cavity
Survey results can be verified by mackintosh probe test

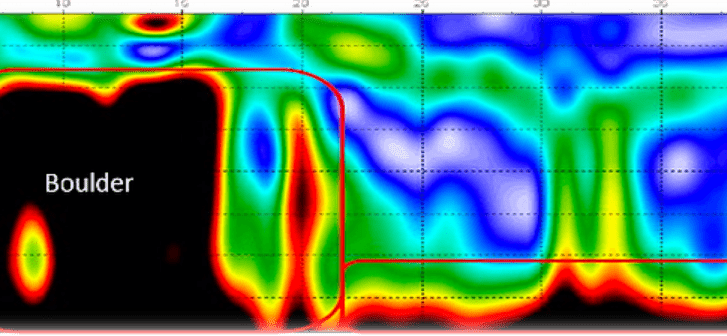

BOULDER DETECTION

Suitable for foundation / piling design
Suitable for cable laying / pipe jacking design
Suitable for earthwork design
Depth of penetration subjected to the survey method
Overcome the limitation of boreholes in detecting localize obstruction such as boulder, seawall, abandoned pile and etc.

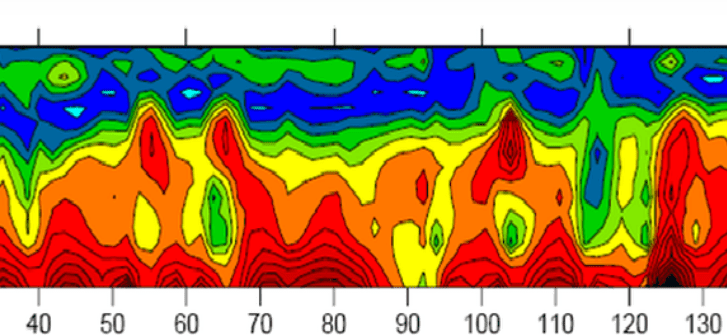

SOIL PROFILING

Suitable for foundation / piling design
Suitable for cable laying / pipe jacking design
Suitable for tunneling design
Suitable for earthwork design
Depth of penetration subjected to the survey method
Combine with boreholes for better interpretation

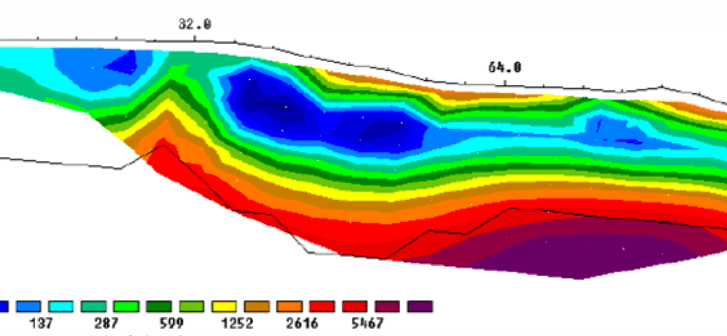

BEDROCK DETECTION

Suitable for foundation / piling design
Suitable for cable laying / pipe jacking design
Suitable for tunneling design
Suitable for earthwork design
Depth of penetration subjected to the survey method
Combine with boreholes for better interpretation

INCREASING RELEVANCE

As Singapore’s public transport system and infrastructures are set to progress and increase in the foreseeable future, information from geophysical survey techniques will be essential for critical decision-making during the entire construction process. These information could help projects minimise rework and repair costs which may be incurred possibly due to, for example:

1) inaccurate inference of the existing pile length
2) misinterpretation of soil profiles
3) unreliable existing information
